Specfication
Eyepiece
WF10X(Φ20mm)

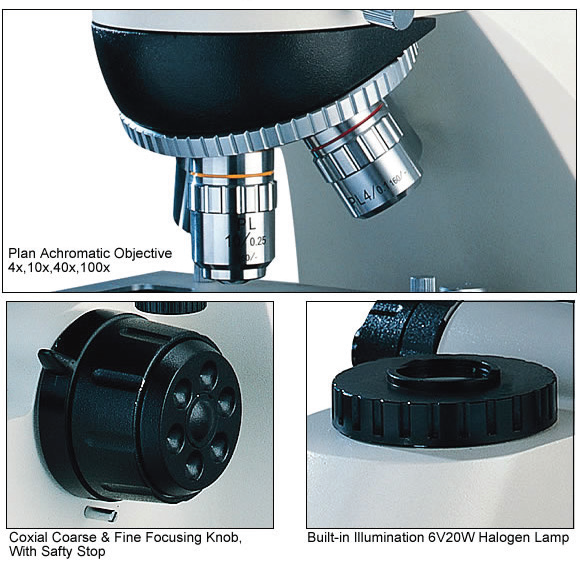

Objective
Plan 4X/0.10
Plan 10X/0.25
Plan 40X/0.65(Spring)
Plan 100X/1.25(Spring, oil)
Head
Binocular
Focus System
Coaxial coarse/fine focus system, Minimum
division of fine focusing: 2um
With tensional adjustable and up stop,
Nosepiece
Quadruple
backward ball bearing inner locating
Stage
Double layer mechanical, size 210x140mm,
moving range 75x50mm
Condenser
Abbe N.A.1.25 Rack & pinion adjustment
Filter
Blue filter
Frosted filter
Collector
For halogen lamp
Light source
6V 20W halogen lamp with brightness control
