Description

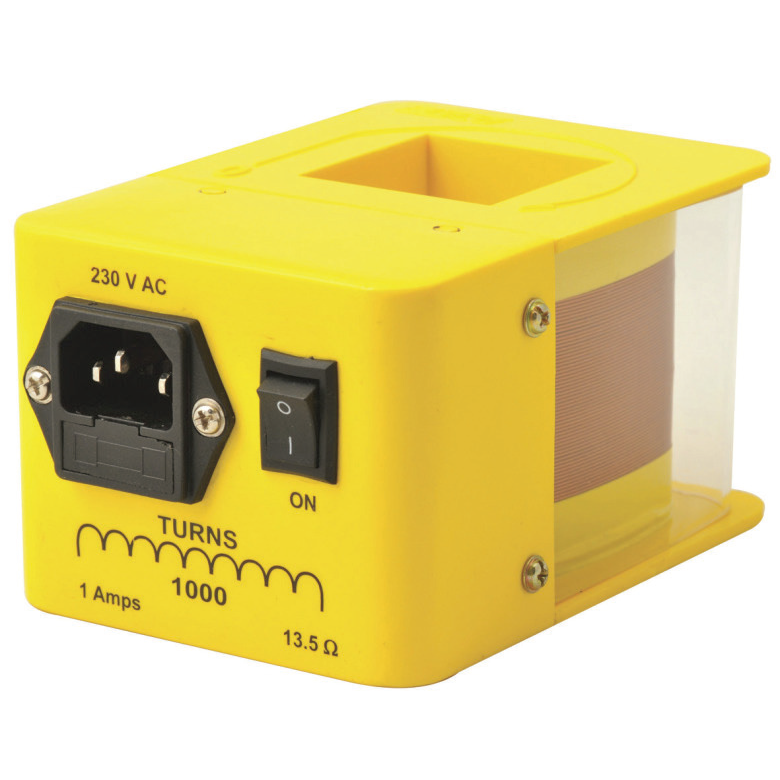

230V Mains Coil for Demountable Transformer
Kit. Can be used to supplement the Demountable
Transformer kit or can be used in conjunction with
the U-Core from this kit and any combination of
the other coils (listed below) for your particular
requirements. Has two front-mounted 4mm
sockets and is clearly labelled. Note: For
connection to 230V mains the 1000-turn Mains
Coil is required.Full list of available coils:
50 turns, 4A, 0.15Ω
100 turns, 2A, 0.55Ω
200 turns, 1A, 2.5Ω
500 turns, 0.5A, 8.95Ω
1000 turns, 0.3A, 39.5Ω
2000 turns, 0.05A, 445Ω
1000 turns, 1A, 13.5Ω (with 230V mains connector
and plug)
