Description

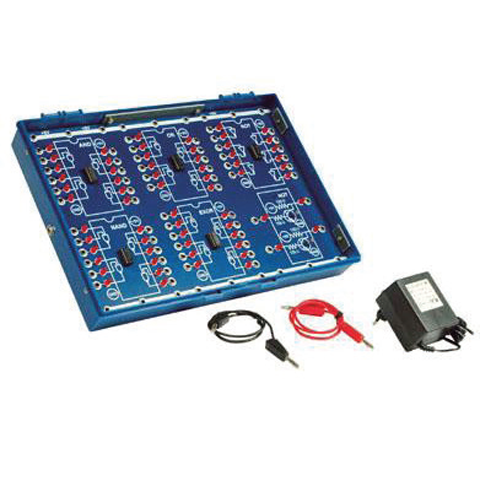

Easy to use digital circuits project and testing
board. The Logic Circuit Board is a complete
solution for the study of logic gates. A logic gate
is an arrangement of controlled switches used to
calculate operations using Boolean logic in digital
circuits. The board features AND, NAND, OR, EXOR
and two different types of NOT gates. The kit is
supplied in sturdy plastic storage case with power
supply and connection cables.
Equipment needed:
Digital Multimeter
