Description

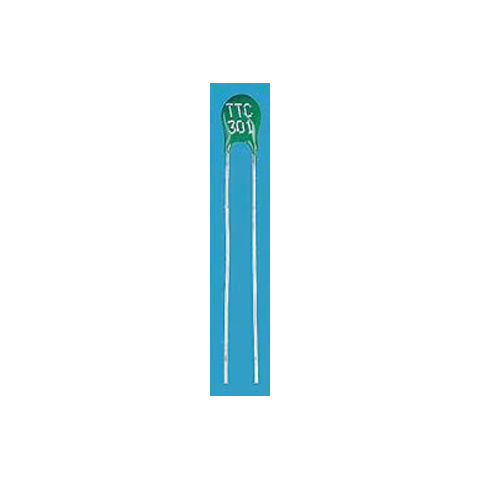

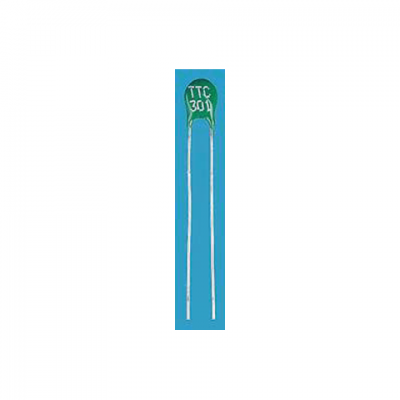

A range of NTC (Negative Temperature
Coefficient) miniature disc thermistors,
for general purpose applications such as
temperature measurement and thermal
compensation circuits. Also useful in the
classroom for demonstrating how the
resistance changes with temperature. A
thermistor is a temperature dependant resistor
or ‘thermal resistor’. The thermistors are clearly
coded and have a wide working temperature
range of –30°C to +125°C and a tolerance of
10%. Resistance Approx. resistance Max. current
B-Constant Thermal time at 25°C @ 100°C @ 25°C
constant 300O 24O 115mA 3500°K 22s 1kO 90O
70mA 3800°K 22s 5kO 300O 30mA 3950°K 21s
20kO 1kO 20mA 4250°K 23s. In packs of 10.
A – 300 Ohms
B – 1K Ohms
C – 5K Ohms
D – 20K Ohms
